Horizontal and Vertical User Stories - Slicing the Cake



Written by Ned Kremic



User stories are an agile approach to requirements.

User story is description of functionality as seen from user perspective of the system (I want to withdraw $100 from my checking account”), not from perspective of a developer of the system (“the system shall tokenize the bank card number...”). Which is exactly what its name implies “the user story” not just “the story”!

The primary purpose of the user story is to let the user express in clear, unambiguous, non-technical language what she really wants, so that all stakeholders involved in a story implementation could understand it.



What are Vertical and Horizontal Stories?

In the last few years when agile adoption has started to spread rapidly, we have seen many references to vertical and horizontal stories. What are those, and is there any need for distinction between them.

The term “vertical” came from now famous analogy of the complex system under consideration, to a cake (Bill Wake 2003).



A story needs to be valuable. We don't care about value to just anybody; it needs to be valuable to the customer. Developers may have (legitimate) concerns, but these framed in a way that makes the customer perceive them as important.



This is especially an issue when splitting stories. Think of a whole story as a multi-layer cake, e.g., a network layer, a persistence layer, a logic layer, and a presentation layer. When we split a story, we're serving up only part of that cake. We want to give the customer the essence of the whole cake, and the best way is to slice vertically through the layers. Developers often have an inclination to work on only one layer at a time (and get it "right"); but a full database layer (for example) has little value to the customer if there's no presentation layer. 


~ Bill Wake

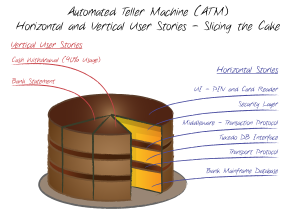

 Slicing-The-Cake-ATM-Horizontal-And-Vertical-User-Stories



The end user really doesn’t care how the system is structured and built, she only values the functionality she is interested in. Therefore “withdrawing $100 from the checking account” might be very complex operation that needs to go through all technological layers, but at the end it must satisfy user need “to withdraw $100”.



Vertical Stories

Rather than building the system, layer by layer, in which case the end user will have a chance to experience the system only when it is fully done, the idea is to build it, user story by user story, where each one will cross all horizontal layers.
Analogy is that each user story represents one tiny slice of cake, hence its name: vertical story = slice of cake
Therefore “As a user of ATM, I want to withdraw cash from my bank account” and “As a user of ATM, I want to pay my utility bill” are the vertical user stories.

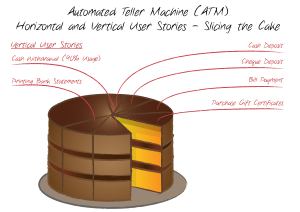

Slicing-The-Cake-ATM-Vertical-User-Stories



Vertical user story is not a scenario.



One user story may contain many positive and negative scenarios, and they should be part of acceptance criteria for that user story. 

From the user story mentioned above, we can derive at least ten positive scenarios, and all of them at the end will result in satisfied user walking away from ATM with $100 cash.



  • User enters the wrong password, then corrects it
  • User enters the amount larger than the daily withdrawal limit, then corrects it.
  • User enters the amount larger than the her account balance, then corrects it.



Similarly we can come up with five times more negative scenarios that will result in user being rejected withdrawal from her account.



  • Wrong bank card
  • expired bank card
  • customer forgot her password
  • account in negative balance
  • ATM has no money



Vertical stories are written in a unambiguous language that is easily understood by all stakeholders of the system, and encourages the conversation between them.

All those scenarios mentioned above can be easily communicated between the product owner and the team (developer and tester), and specified as an acceptance criteria.



Horizontal Stories

Back to our analogy between the complex software system and the cake. Cake consists of several layers, similar to software system that consists of several architectural layers.. Horizontal stories are stories that belong to one architectural layer of the system, such as DB, network, security, middleware application, UI etc. Those are the stories or requirements that are easily understood only by that particular layer specialists.

 
Even though we may call them stories, and write them as stories, they are in fact requirements, as rarely horizontal stories can deliver the value to the end customer without interaction with other layers of the software system.



Therefore: Horizontal user stories = Traditional IEEE 830 requirements



For instance DBA has focus and responsibility only for the DB layer and operations relevant to DB.
UI designer is interested in visual representation and user experience, and is not concerned with DB normalization, query optimization and store procedures.

Although particular layer functions are absolutely necessary and have perfect sense to developers, alone they don’t bring tangible value to the end user.



  • “The system shall tokenize the credit card number”
  • “The system shall check the credit limit against the NFDB”
  • “The system shall transfer the approved funds to the receiving institution”



The major caveats of the “horizontal” approach are:



  • The feedback loop is long, which significantly increases the risk. The entire cake must be baked before the customer realizes that the cake she got is not the one she wanted (in the best case she will get what she has asked for, but at the end it is not what she had in mind).



Maybe she preferred walnuts rather than almonds in one of the cake layers. Or she wanted pink icing for her daughter birthday rather than the blue one, that baker has assumed because icing colour had not been specified.
If she had a chance to sample one slice, she would have realized those gaps early on.



  • It is difficult to prioritize horizontal stories/requirements and potentially release the most important ones or the most required features first (Fast time-to-market)
  • For example, during the initial pilot roll-out of ATM machines, most bank customers have asked for ability to withdraw their money 24/7 and check their balance. And based on the marketing research, just withdrawing the cash would accounts for over 90% of intended usage of ATM
  • It could have been easily achieved with two vertical stories (epics) and delivered to the market early:
  • As a user of ATM, I want to withdraw cash from my bank account”
  • As a user of ATM, I want to get the current balance of my bank account”
  • Knowing this fact, the prudent approach would be to release the first version of ATM, only with ability to dispense the cash (and we can call it “the cash machine”). The bank would be able to release it to the market much sooner (3-6 months) rather than waiting to implement the full functionality (12-15 months)

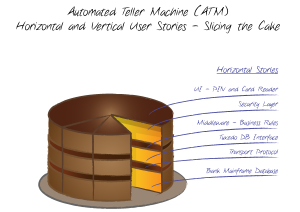

Slicing-The-Cake-ATM-Horizontal-User-Stories



However, application layer developers working based on the horizontal requirements specified for release 1, scheduled to be released in 15 months, have started to work on “processTransaction”  functionality that will cover fund transfers from one account to the other one, bill payments and deposits, rather than the cash withdrawal.



If competition is just about to release the two most demanding ATM functions in four months, and our full-fledged ATM will be released in 15, the bank is in danger of losing rather large number of its customers.



Why Transitioning to the Vertical Stories is Difficult

Even though the concept behind the user stories is so simple, almost self-explanatory, their adoption and effective use in practice is quite complex for new organizations that are transitioning to agile.
There are two major obstacles that most agile teams are facing when transitioning to user stories:



Resistance to Change

The user stories, even as simple as they are, present major paradigm shift for most new team members who are coming from traditional technologically layered systems.


The truth is that they see their world in a horizontal way, as they have been taught, trained, specialized and then worked for years on horizontal layers!

Most data architects and DBA in order to properly design the database and normalize the tables, would like to see all detailed requirements upfront. Similar situation is with the solution and infrastructure architects, as well as specific domain (horizontal layer) subject matter experts. Notion of incremental development and deliveries based on vague user stories are in most cases so strange that majority of them have hard time even contemplating.



Complexity of the System - The Iceberg Phenomenon



Iceberg

Although the cake analogy to complex software system is fantastic way to easily describe the horizontal requirements and vertical user stories, it does present very simplistic view of the system.

In reality most software systems are not shaped as a regular cake, rather like the iceberg. Just 1/8 of the system is visible therefore tangible to the end user. The remaining 7/8 of the system is invisible hidden under the water.

The challenge is describing, implementing and integrating 7/8 of the system that is laying under the water, with the user stories derived from 1/8 of the system.



Consider this typical iceberg user story:
As a user of Expedia travel site, I would like to see the list of flights between the two selected cities, with total, tax inclusive prices”



There is enormous complexity of this user story that lays beneath the water. Integration between the various airline reservation systems, tax calculations based on the province or state of residence, performance requirements etc.

This user story is typical epic that cannot be implemented in one iteration. It takes practice and experience to split such stories along vertical lines, implement them in a single iteration and still deliver the value to the user.

Natural tendency of most teams would be to split that epic flow into numerous horizontal user stories, and integrate them all together at the end. However this is not the optimal solution and probably the worst way to split the story.



Splitting the story along the horizontal layers, means losing all advantages of tiny vertical stories mentioned above



It is beyond the scope of this article to analyze the optimal ways to split the vertical user stories, however as a guideline, the teams should always judge the newly created story against the INVEST criteria. If any of the letters is missed, the user story is flawed and should be rewritten.

http://xp123.com/articles/invest-in-good-stories-and-smart-tasks/



Building the System by Stacking the Horizontal Layers

It is almost impossible or impractical to align all horizontal stories across different layers, and adjust them to always changing business priorities.



With horizontal stories, we can consider that the software system is complete when each horizontal layer fulfills a list of requirements (horizontal stories) and is integrated together.

The user will have a chance to see and experience the system once it is fully assembled.

The best outcome would be if the user gets “what she has asked for”. However if what she got is not what she had wanted and doesn’t satisfy users goals, there will be “change of scope”, and the whole vicious cycle will go again...





Building the System by Joining the Vertical Slices

On the contrary, with vertical user stories, the software system is built incrementally, implementing user story by user story, where each story fulfills the user goals.

History has taught us, that users may have different and probably better opinions once they see and experience each vertical slice. And we expect that user may want to change that slice either because she didn’t get what she had wanted, or she has seen the potential for even better improvement. Again the original ask is irrelevant, the paramount is always that the user gets what she wants, and that is the best value for each slice.



Going even further, we can say that the software system is not done when the scope is completed, rather when it fulfills the most important user goals (Bank customer can withdraw the cash from ATM 24/7, which attributes to 90% of ATM usage), 
That goal may be satisfied and software released well before the entire scope is completed (cash withdrawals, deposits, transfers, bill payments, statements...)

That powerful approach, is the major driver behind the rapid time-to-market delivery of agile software.
